      The Windows 2000 Indexing Service
      Also known as Index Server, it catalogs your website, allowing your visitors to search against your content. This article goes through installing the Indexing Service on Windows 2000, pointing it to your web site, tuning it for speed and efficiency, showing you how to use it with some sample code against the ADO, and what to do if it fails.

      Published: Apr 19, 2002
      Tested with: ASP 3.0, Windows 2000 Server
      Category: ASP
      11,708 views

      Introduction
      The Indexing Service on Windows 2000 allows us to create a search engine for our site. Documentation on it though, is amazingly scarce and scattered. There's plenty out there on how to use it with IDQ/HTX templates, but as far as I see it, there are three fundamental problems with those:

      1. they are hard to use as they require you to learn a separate language syntax.
      2. they don't allow you to use standard ASP code, as they pass through a special DLL filter and not the ASP.DLL. For example, you cannot use include files.
      3. they are old technology.

      In this article, I will take you through what is necessary to get it working on your site. I will go through:
      • installing the service,
      • pointing it to your web site,
      • tuning it for speed and efficiency,
      • the ASP code which makes it work,
      • and what to do if it fails.

      Installation

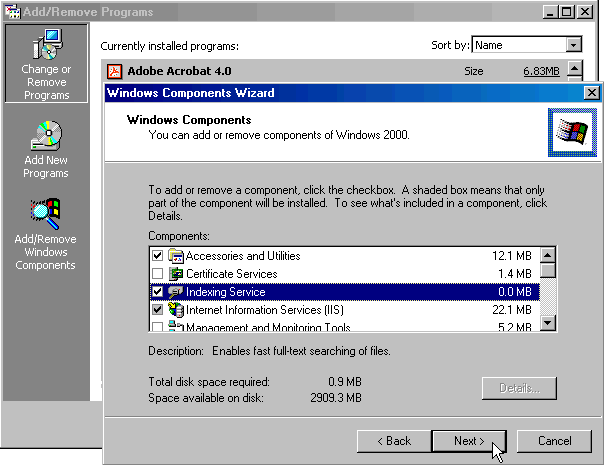

      The Indexing Service version 3 is the only one that will run on Windows 2000 at this time (April 19, 2002). It is installed by default. If you have not already installed the Indexing Service during the Windows setup (or are not sure if you have or not and you want to check), here’s how you would do it:

      Start > Settings > Control Panel > Add/Remove Programs > Add/Remove Windows Components

      If you see Indexing Service checked, then it's already installed. Let’s assume it's not installed yet. Check the Indexing Service and then press Next. Windows will install the necessary files and when it’s done, you need to click on Finish. You might be asked for the Windows 2000 Server installation CD to copy the necessary files.


      The service should now be installed. To check on the service, go to:

      Start > Programs > Administrative Tools > Computer Management


      Then click on:

      Services and Applications > Indexing Service

      You should be able to expand the service and see the 2       Catalogs which were created by default: a System catalog and a Web catalog (this one only if it finds an instance of Internet Information Server (IIS) already running on the server).

      Creating a new Catalog
      A catalog is like a database where the service stores all the information after it is done indexing your files. My recommendation is to erase both catalogs which are created by default. The Web points to C:\Inetpub (potential security hole), and the System is only useful if you are going to do local searches on the server. If you are using the service only through the internet then it’s safe to erase both of them.

      So, let’s say you want to use the service to search against your web site. First, you have to create a web site through the IIS console. I will assume that you know how to do that already and you have a web site up and running. Once you have that running, then you have to tell IIS to Index the web site. You do that through the Home Directory tab of the site Properties. Make sure Index this Resource is checked. If not, check it.


      All subfolders of your web site will be indexed if you do this. If you want to exclude a certain folder from being indexed (for example, your images folder), navigate to that folder in the console, go to its properties and uncheck the Index this resource. There is another way to remove folders from a catalog, which I will go through later, but this is the recommended way for websites. This is where a good design of your website is necessary. Put all your images into a folder called images for example, and turn off indexing for it. Do the same for all your content that you want indexed or not indexed. That way, you can just check/uncheck the Index this resource on that folder's properties and it propagates to all the folders/files under it.

      By default, the Indexing Service will index HTML files, text files, Office 95 and later files, internet mail and news, and any other document that a filter is provided. For example, Adobe makes its own IFilter which once installed, helps the service index Acrobat (pdf) files.

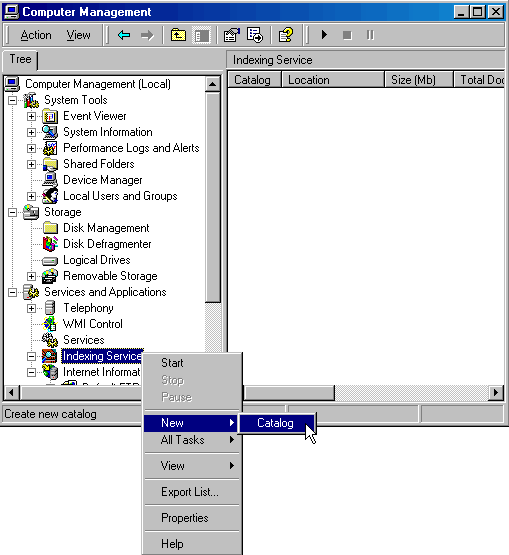

      The next step is to create a new catalog to house all the information. It’s probably a good idea to create a new folder to use exclusively for your catalog(s). Do not save your catalog under a folder that is being indexed by the same catalog or any other. Your English site could be under C:\catalogs\english, your French at C:\catalogs\french, etc. First create those folders. Then open your Computer Management Console, and right click on the Indexing Service, or click on Action on top, and go to New > Catalog.


      Type a name for your catalog, and pick a location where you want to save the catalog (our english catalog would go under C:\catalogs\english).


      After you create it, you need to specify what to include or not include in it so that the service will start indexing that content. Right click on the catalog you want to edit, click on Properties and move to the Tracking tab. In this case we want it to point to a web site, so you have to tell it what web server to associate it with. Pick one from the pull-down list.


      Now when you start the service, it will start indexing your web site. Under the Generation tab, you can select whether to inherit parent attributes or uncheck it so that you can customize it. I chose only to Generate Abstracts and not index files with unknown extensions. Abstracts are another word for the HTML description meta tag, which goes in the HEAD of the document. When indexing an HTML page, it will look to see if there is one in the HEAD. If there is none, then it will pick the first 320 characters from the body to create the abstract. The maximum number for this string length is 500. To define your own abstract in an HTML document, add a DESCRIPTION meta tag in the head of your file, like this:

      1
      		<html>
      2
      		<head>
      3
      		<meta name="description" content="This page explains the WIN2K Indexing Service.">

      As promised earlier, here is another way to add or delete folders to be indexed. Go to the Indexing Service Console and right click on Directories and go to New > Directory.


      Doing so, gets you to the Add Directory dialog box:


      Choose the path of the folder you want to add to your catalog, and choose from the radio button whether you want it included or excluded from the index. You can add folders on remote computers as long as they are correctly mapped in your system. The Alias (UNC) is not necessary.

      The "noise" file
      Inside your C:\WINNT\system32 folder you should find a file called noise.eng. Open it with a text editor like Notepad. You will see that its contents are single words or numbers, one under the other, each on its own line. This is the word exception file, and the Indexing Service uses this file when it indexes a file to exclude the words that are there. These are common words, like and, or, or numbers. You can edit this file, adding or deleting your own words. If you edit these files, you will need to empty the catalogs and restart the Indexing Service, so that the updated exception list can take effect.

      There is a different noise file for every language: noise.enu is specifically for the U.S.A. as opposed to noise.eng which is for U.K. english. The French file is called noise.fra, the German noise.deu, and so on. You can see a list of all your files in the registry. Run regedit from Start and navigate to: HKEY_LOCAL_MACHINE > SYSTEM > CurrentControlSet > Control > ContentIndex > Language. You will see a listing of all the languages, and the key name is NoiseFile.

      Tuning Performance
      First stop the Indexing Service. Once you do that, you can tune the performance of the engine. Go to All Tasks > Tune Performace:


      You will see the following menu:


      You can choose Dedicated Server if you want to make this catalog and this service immediately responsive to changes on the file system. You can also select Customize and then click on the button, which will give you this dialog:


      Move the Indexing slider to Lazy for less immediate indexing or to Instant for immediate indexing of new and changed documents. Lazy indexing uses fewer resources; Instant indexing uses as much of the computer's resources as it can. Move the Querying slider to Low load if you expect to process only a few queries at a time or to High load if you expect to process many queries at a time. Low load uses fewer resources; high load uses more. You can increase or decrease these settings are you see fit. Keep in mind that doing so will cause your server to use more resources for this activity. I have used the above setting for large sites with thousands of documents with success.

      One thing about the Indexing Service's resources you should know about: It is very demanding on the OS when it is first started as it tries to index everything in the catalog. It moves through pretty quickly, indexing thousands of html documents in just a few minutes. But once it finishes it just sits there, not really using many resources. It responds to file changes through the OS, so it knows to index a file once it's changed/created/deleted. This way, you can keep the service running on a small computer and you still get good performance out of it.

      The search input form(index.html)
      This file is the form that accepts your search arguments.

      1
      		<form action="runsearch.asp" method="post" name="form1">
      2
      		<table cellpadding="2" cellspacing="0" border="0" align="left">
      3
      		    <tr>
      4
      		        <td width="50">&nbsp;</td>
      5
      		        <td colspan="2">
      6
      		            <b>Enter your query below:</b><br>
      7
      		            <input type="text" name="Query" size="45" maxlength="100" value=""></td>
      8
      		    </tr>
      9
      		...

      I limit the query string that a user can input by 100 characters. That should be enough for everybody and helps prevent hacking. You can change this if you like.
      1
      		...
      2
      		    <tr>
      3
      		        <td>&nbsp;</td>
      4
      		        <td align="right">
      5
      		            <select name="Scope">
      6
      		                <option value="/" selected>Entire Site</option>
      7
      		                <option value="/products/">Products</option>
      8
      		                <option value="/services/">Services</option>
      9
      		                <option value="/news_events/">News & Events</option>
      10
      		                <option value="/about_us/">About us</option>
      11
      		            </select></td>
      12
      		        <td>Search where?</td>
      13
      		    </tr>
      14
      		...

      The Scope is another word for folder. It is used to tell the Indexing Service if it’s going to search everything (/), or just under a specific folder of the site(/products/). You can go as deep as you like and it will only search under that folder: for example /products/bicycles/electric/kids/ would search for documents only under the kids folder.

      1
      		...
      2
      		    <tr>
      3
      		        <td>&nbsp;</td>
      4
      		        <td align="right">
      5
      		            <select name="RecordsPerPage">
      6
      		                <option value="10" selected>10</option>
      7
      		                <option value="25">25</option>
      8
      		                <option value="50">50</option>
      9
      		                <option value="100">100</option>
      10
      		            </select></td>
      11
      		        <td>Number of results per page</td>
      12
      		    </tr>
      13
      		...

      Sometimes users want to set how many results they see on one page: fewer or maybe more. You can allow them to do this through a simple pulldown menu as shown above, or through a text box where they type the number themselves.

      1
      		...
      2
      		    <tr>
      3
      		        <td>&nbsp;</td>
      4
      		        <td align="right">
      5
      		            <select name="Order">
      6
      		                <option value="Rank" selected>Ranking Result</option>
      7
      		                <option value="Size">Size</option>
      8
      		                <option value="Write">Last Date updated</option>
      9
      		            </select></td>
      10
      		        <td>Arrange in order</td>
      11
      		    </tr>
      12
      		...

      It's common to list results in order of best match. However, it's possible to rank the resultset under any of the properties in the catalog. You can theferore allow the user to choose the ranking order. Above, I give them the option of ranking the results in order of simply Rank, Size or Date Last Updated.
      1
      		...
      2
      		    <tr>
      3
      		        <td>&nbsp;</td>
      4
      		        <td align="right"><input type="SUBMIT" value="Search" name="SUBMIT"></td>
      5
      		        <td>&nbsp;</td>
      6
      		    </tr>
      7
      		    <tr>
      8
      		        <td>&nbsp;</td>
      9
      		        <td>&nbsp;</td>
      10
      		        <td>&nbsp;</td>
      11
      		    </tr>
      12
      		</table>
      13
      		</form>

      And last, the submit button.

      Finally, show me some code! (runsearch.asp)

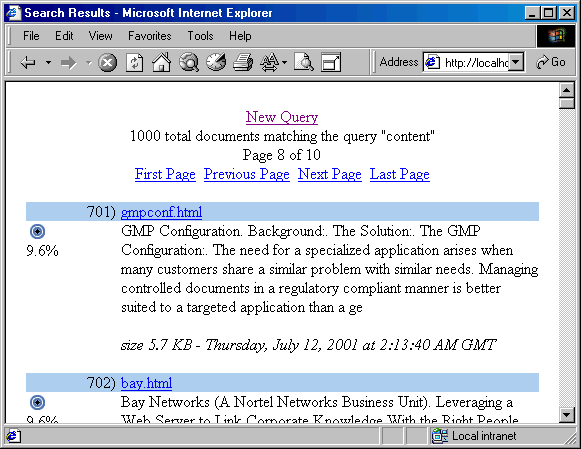

      The picture above shows what the returned results should look like. This file, runsearch.asp is responsible for issuing the search against the catalog and properly displaying the returned results. The code should work right out of the box for you, as long as you change a few variables. It consists of:
      Global variablesLook for a section called EDIT THESE...END EDIT somewhere in the beginning of this file and change those parameters to fit your system. Those should be the only ones you need to change, the rest is up to you.
        1. One of them is the starslocation to point to where you saved your images for the ranking display.
        2. Another is the strCatalog, which is the name that you gave to your catalog.
        3. The last one is the strCustomTitle which I explain below what it does.
      Sub RunSearch()This is the main sub that gets called when the page loads and then calls everything else. It creates a connection to the Indexing Service, gets records through GetRows(), loops through, checks, validates and formats the output.
      Function BuildQuery(strScope, strQuery)This function returns a full SQL command to use against the Indexing Service with ADO. Out of the box you get searches against htm, html, asp, ppt, doc, xls, txt, and pdf files, and does not support boolean searches.
      Sub WriteNavigation(strNavigation, intTotalRecords, intTotalPages)This sub creates the text for the top navigation links that you see in the picture, i.e. moving from page to page.
      Function FileSize(intFileSize)Formats the size output of a file to KB, MB, GB, etc.
      Function myFixDate(datWrite)Formats the date last modified output to an international date format.

      Let's go through the code here in detail to help you understand what's going on. I have added some error catching, to account for mistakes as well as for malicious users trying to break your site.

      1
      		<%@Language="VBScript"%>
      2
      		<%Option Explicit%>
      3
      		<%Response.Buffer = True%>
      4
      		<html>
      5
      		<head>
      6
      		    <title>Search Results</title>
      7
      		</head>
      8
      		<body>
      9
      		<%
      10
      		On Error Goto 0
      11
      		Dim strQuery 'user entered text for search
      12
      		Dim intPage 'page number we are on
      13
      		Dim intStartingRecord 'point to start selecting from the recordset
      14
      		Dim intRecordsPerPage 'developer defined
      15
      		Dim strOrder 'developer defined: what to order against
      16
      		Dim strScope 'Scope to search against
      17
      		Dim QUOT 'character 32 for ease of coding
      18
      		Dim strNavigation 'HTML string for navigation links/info
      19
      		Dim starslocation 'folder path for search images
      20
      		Dim strCatalog 'developer defined catalog name: query against this
      21
      		Dim strCustomTitle 'starting string to remove from the title of html pages
      22
      		'***** EDIT THESE **********************
      23
      		starslocation = "images/"
      24
      		strCatalog = "english"
      25
      		strCustomTitle = "Xefteri - "
      26
      		'***** END EDIT ************************
      27
      		...

      Between EDIT THESE...END EDIT is what you have to change to make it work for your site. One of these variables is called strCustomTitle. This is a little trick that I use to increase the ratings of my site, and you can do it too. Here's how it works: when one of the public search engines visits your site to index it, one of the most important factors in rating your site is the <title> tags in your pages. You can increase your ranking by including the name of your site in your titles. Let's say your site's name is XYZ. Your titles could then all start with "XYZ - " and then continue with a more descriptive title of the page.

      1
      		<html>
      2
      		<head>
      3
      		    <title>XYZ - Welcome to our site!</title>
      4
      		</head>


      This accomplishes 2 things:

      1. It boosts your rankings when it comes to your name
      2. It improves the readability of someone's bookmarks to your site.

      However, when I display the results of the search I use the title of the page as a link to the actual page. At this point, we do not want to show all our titles beginning with the same thing, so we simply edit the title before displaying it. Edit that variable in the code if you are going to use this, and leave it blank (strCustomTitle = "") if you are not going to use it. If that string is not empty, it will check and remove a matching string from the beginning of each title in the displayed results. If it's not, then it will display the whole title as is.

      1
      		...
      2
      		'-- collect values from request
      3
      		' leave request object open to account for both post and get
      4
      		strQuery = Request("Query")
      5
      		strQuery = Server.HTMLEncode(strQuery)
      6
      		intPage = Request("PAGE")
      7
      		intRecordsPerPage = Request("RecordsPerPage")
      8
      		strOrder = Request("Order")
      9
      		strScope = Request("Scope")
      10
      		'-- define values
      11
      		QUOT = Chr(34)
      12
      		strNavigation = ""
      13
      		'-- account for people trying to hack
      14
      		'-- set max and min values for URL values
      15
      		Select Case intPage
      16
      		    Case ""
      17
      		        intPage = 1
      18
      		    Case intPage > 32767
      19
      		        Response.Write("Page number out of limit!")
      20
      		        Response.End
      21
      		    Case intPage < 0
      22
      		        Response.Write("Page number out of limit!")
      23
      		        Response.End
      24
      		    Case Else
      25
      		        intPage = CInt(intPage)
      26
      		End Select
      27
      		If intRecordsPerPage > 1000 OR intRecordsPerPage < 0 Then
      28
      		    Response.Write("Records Per Page out of limit!")
      29
      		    Response.End
      30
      		Else
      31
      		    intRecordsPerPage = CInt(intRecordsPerPage)
      32
      		End If
      33
      		strOrder = Server.HTMLEncode(strOrder)
      34
      		strScope = Server.HTMLEncode(strScope)
      35
      		If InStr(strScope, "..") Then
      36
      		    Response.Write("Invalid Scope!")
      37
      		    Response.End
      38
      		End If
      39
      		'-- if bad query string supplied (less than 2 characters), show message
      40
      		If Len(strQuery) < 2 Then
      41
      		    Response.Write("<p><b>Sorry, but the search text must be at least two characters long.</b></p>")
      42
      		    Response.End
      43
      		'-- if the user is trying to cause an overflow in the query string catch it
      44
      		Elseif Len(strQuery) > 100 Then
      45
      		    Response.Write("<p><b>Sorry, but the search text must be less than 100 characters long.</b></p>")
      46
      		    Response.End
      47
      		End If
      48
      		'-- evaluate starting record in the recordset
      49
      		intStartingRecord = ((intPage - 1) * intRecordsPerPage) + 1
      50
      		'-- main sub that calls everything else
      51
      		Call RunSearch()
      52
      		...

      The code above collects the user's inputs and tries to make sure that they fall within certain limits. This also helps prevent hacker attacks. If everything is ok, it calls the main sub RunSearch() which does all the work.

      1
      		...
      2
      		Sub RunSearch()
      3
      		    Dim strSearch 'function-returned SQL query
      4
      		    Dim objConn 'Connection object
      5
      		    Dim objRS 'Recordset object
      6
      		    Dim intTotalRecords 'Recordset.RecordCount
      7
      		    Dim intTotalPages 'objRS.PageCount
      8
      		    Dim arrAllData 'Recordset.GetRows()
      9
      		    Dim numrows 'UBound of arrAllData to get the total rows in objRS
      10
      		    Dim rowcounter 'simple counter used in the loop
      11
      		    Dim strDocTitle 'objRS("DocTitle")
      12
      		    Dim lengthstrDocTitle 'Len(objRS("DocTitle"))
      13
      		    Dim strFilename 'objRS("Filename")
      14
      		    Dim strVPath 'objRS("VPath")
      15
      		    Dim intSize 'objRS("Size")
      16
      		    Dim datWrite 'objRS("Write")
      17
      		    Dim strCharacterization 'objRS("Characterization")
      18
      		    Dim numRank 'objRS("Rank")
      19
      		    Dim NormRank 'Rank/10 = change to a percentage
      20
      		    Dim stars 'image to display for Ranking
      21
      		    '-- build up the query string by calling the BuildQuery function
      22
      		    strSearch = BuildQuery(strScope, strQuery)
      23
      		    '-- create a connection object to execute the query
      24
      		    Set objConn = Server.CreateObject("ADODB.Connection")
      25
      		    objConn.ConnectionString = "provider=msidxs; Data Source=" & strCatalog
      26
      		    objConn.Open
      27
      		    '-- create a recordset to hold the data
      28
      		    Set objRS = Server.CreateObject("ADODB.RecordSet")
      29
      		    objRS.CursorLocation = 3 'adUseClient
      30
      		    objRS.Open strSearch, objConn, 0, 1 'adOpenForwardOnly, adLockReadOnly
      31
      		    '-- if errors occured
      32
      		    If Err.Number <> 0 Then
      33
      		        Response.Clear
      34
      		        Response.Write("<p><b>There was an error processing your request.<br>Please go back and try again.</b></p>")
      35
      		        '-- close all objects to free up resources
      36
      		        objRS.Close
      37
      		        Set objRS = Nothing
      38
      		        objConn.Close
      39
      		        Set objConn = Nothing
      40
      		        Response.End
      41
      		    Else
      42
      		        '-- no errors but no records returned
      43
      		        If objRS.EOF and objRS.BOF Then
      44
      		            Response.Clear
      45
      		            Response.Write("<p><b>No pages that matched your query </b>[<b>" & strQuery & "</b>]<b> were found.</b></p>")
      46
      		            '-- close all objects to free up resources
      47
      		            objRS.Close
      48
      		            Set objRS = Nothing
      49
      		            objConn.Close
      50
      		            Set objConn = Nothing
      51
      		            Response.End
      52
      		        '-- or if there was no error and some records were successfully returned then
      53
      		        Else
      54
      		            '-- set the recordset starting position so that we can get the number
      55
      		            ' of records we want from this point on using the GetRows() function
      56
      		            objRS.AbsolutePosition = intStartingRecord
      57
      		            '-- set the pagesize through the object so we can count # of pages returned
      58
      		            objRS.PageSize = intRecordsPerPage
      59
      		            '-- # of total records found
      60
      		            intTotalRecords = objRS.RecordCount
      61
      		            '-- # of total pages found
      62
      		            intTotalPages = objRS.PageCount
      63
      		            '-- create a 2 simensional array of the records using GetRows()
      64
      		            ' and only select how many records we want to see per page
      65
      		            arrAllData = objRS.GetRows(intRecordsPerPage)
      66
      		            '-- close all objects to free up resources
      67
      		            objRS.Close
      68
      		            Set objRS = Nothing
      69
      		            objConn.Close
      70
      		            Set objConn = Nothing
      71
      		            '-- write table to wrap contents with a margin equal to the cellpadding
      72
      		            Response.Write("<div align=""left""><table border=""0"" cellspacing=""0"" cellpadding=""10"" align=""left""><tr><td>")
      73
      		            '-- write top/bottom navigation links/info
      74
      		            ' by calling the WriteNavigation() sub
      75
      		            Call WriteNavigation(strNavigation, intTotalRecords, intTotalPages)
      76
      		            '-- table with contents of search inside
      77
      		            Response.Write("<br><table border=""0"" cellspacing=""0"" cellpadding=""0"" width=""100%"">")
      78
      		            '-- find out how many rows we have
      79
      		            ' this should be the same as the intRecordsPerPage but not always
      80
      		            ' an exception would be when the last page does not have enough left
      81
      		            numrows = UBound(arrAllData,2)
      82
      		            '-- now loop through the records
      83
      		            For rowcounter= 0 To numrows
      84
      		                '-- row values held in variables for ease of use
      85
      		                strDocTitle = arrAllData(0, rowcounter)
      86
      		                strFilename = arrAllData(1, rowcounter)
      87
      		                strVPath = arrAllData(2, rowcounter)
      88
      		                intSize = FormatNumber(arrAllData(3, rowcounter))
      89
      		                datWrite = arrAllData(4, rowcounter)
      90
      		                strCharacterization = arrAllData(5, rowcounter)
      91
      		                numRank = arrAllData(6, rowcounter)
      92
      		                '-- create an empty space if the field is empty
      93
      		                ' for proper display of the table <td></td>
      94
      		                If IsNull(strCharacterization) Or Trim(strCharacterization) = "" Then
      95
      		                    strCharacterization = "&nbsp;"
      96
      		                End If
      97
      		                Response.Write("<tr><td bgcolor=""#AACCEE"" align=""right"">" _
      98
      		                    & intStartingRecord & ")</td>" _
      99
      		                    & "<td bgcolor=""#AACCEE"" width=""5"">&nbsp</td>" _
      100
      		                    & "<td bgcolor=""#AACCEE""><a href=""" & strVPath & """>")
      101
      		                    '-- if title found in header is bigger than 2 characters
      102
      		                    ' it probably means that there is a <title> for this document
      103
      		                    If Len(strDocTitle) > 2 Then
      104
      		                        '-- look for and get rid of custom title words used for search engines
      105
      		                        ' only if your strCustomTitle string is not empty
      106
      		                        ' and those words are in the beginning of the title
      107
      		                        If strCustomTitle <> "" Then
      108
      		                            If LCase(Left(strDocTitle, Len(strCustomTitle))) = LCase(strCustomTitle) Then
      109
      		                                lengthstrDocTitle = Len(strDocTitle)
      110
      		                                strDocTitle = Mid(strDocTitle,Len(strCustomTitle), lengthstrDocTitle)
      111
      		                            End If
      112
      		                        End If
      113
      		                        Response.Write(Server.HTMLEncode(strDocTitle))
      114
      		                        '-- no title found in header or could not pick it up
      115
      		                        ' write filename instead so users have something to click on
      116
      		                    Else
      117
      		                        Response.Write(Server.HTMLEncode(strFilename))
      118
      		                    End If
      119
      		                    Response.Write("</a></td></tr>" _
      120
      		                        & "<tr><td align=""left"" valign=""top"">")
      121
      		                    '-- show proper image for ranking
      122
      		                    NormRank = numRank/10
      123
      		                    If NormRank > 80 Then
      124
      		                        stars = "rankbtn5.gif"
      125
      		                    ElseIf NormRank > 60 Then
      126
      		                        stars = "rankbtn4.gif"
      127
      		                    ElseIf NormRank > 40 Then
      128
      		                        stars = "rankbtn3.gif"
      129
      		                    ElseIf NormRank > 20 Then
      130
      		                        stars = "rankbtn2.gif"
      131
      		                    Else
      132
      		                        stars = "rankbtn1.gif"
      133
      		                    End If
      134
      		                    '-- Chr(37) = %
      135
      		                    '-- write correct image and percentage ranking
      136
      		                    Response.Write("<img src=""" & starslocation & stars & """><br>" _
      137
      		                        & NormRank & Chr(37) & "</td><td>&nbsp;</td>" _
      138
      		                        & "<td align=""left"" valign=""top"">")
      139
      		                    '-- write summary of the page
      140
      		                    Response.Write(strCharacterization & "<br><br><i>")
      141
      		                    '-- write file size or show error in case
      142
      		                    ' we have a NULL value returned
      143
      		                    If Trim(intSize) = "" Or IsNull(intSize) Then
      144
      		                        Response.Write("(size unknown) - ")
      145
      		                    Else
      146
      		                        Response.Write("size " & FileSize(intSize) & " - ")
      147
      		                    End If
      148
      		                    '-- write date last modified or show error in case
      149
      		                    ' we have a NULL value returned for DateLastModified
      150
      		                    If Trim(datWrite) = "" Or IsNull(datWrite) Then
      151
      		                        Response.Write("(time unknown)")
      152
      		                    Else
      153
      		                        Response.Write(myFixDate(datWrite) & " GMT")
      154
      		                    End If
      155
      		                    Response.Write("</i></td></tr>" _
      156
      		                        & "<tr><td colspan=""3"">&nbsp;</td></tr>")
      157
      		                    '-- increment the number listing showing on the left by one
      158
      		                    intStartingRecord = intStartingRecord + 1
      159
      		                Next 'rowcounter= 0 To numrows
      160
      		                '-- end of table with search contents
      161
      		                Response.Write("</table><hr width=""100%"" size=""2"" noshade>")
      162
      		                '-- now write again the top navigation menu we generated
      163
      		                ' we don't need to call the sub again because
      164
      		                ' it's now in a local variable
      165
      		                Response.Write(strNavigation)
      166
      		                '-- close wrapping table
      167
      		                Response.Write("<br></td></tr></table></div>")
      168
      		            End If 'objRS.EOF and objRS.BOF
      169
      		        End If 'Err.Number <> 0
      170
      		End Sub
      171
      		...

      Plainly, this sub calls everything else. It connects to the catalog, issues the query, returns a recordset, and then it formats it appropriately and writes it out. The rest of the functions are responsible for formatting the resultset.

      1
      		...
      2
      		'-- build SQL query string for Index Server ADO query
      3
      		Function BuildQuery(strScope, strQuery)
      4
      		    Dim strPropertyName
      5
      		    Dim SQL 'SQL string to search against
      6
      		    Dim strQText
      7
      		    Dim blnAddedQ
      8
      		    Dim intQPos
      9
      		    SQL = "SELECT DocTitle, Filename, Vpath, Size, Write, Characterization, Rank FROM "
      10
      		    If strScope = "" Then
      11
      		        SQL = SQL & "SCOPE() "
      12
      		    Else
      13
      		        SQL = SQL & "SCOPE('DEEP TRAVERSAL OF " & QUOT & strScope & QUOT & "')"
      14
      		    End if
      15
      		    strQText = strQuery
      16
      		    If InStr(strQText, " ") > 0 Or InStr(strQText, "'") > 0 Then
      17
      		        blnAddedQ = False
      18
      		        If Left(strQText, 1) <> QUOT Then
      19
      		            strQText = QUOT & strQText
      20
      		            blnAddedQ = True
      21
      		        End If
      22
      		        If Right(strQText, 1) <> QUOT Then
      23
      		            strQText = strQText & QUOT
      24
      		            blnAddedQ = True
      25
      		        End If
      26
      		        If blnAddedQ Then
      27
      		            intQPos = Instr(2, strQText, QUOT)
      28
      		            Do While intQPos > 0 And intQPos < Len(strQText)
      29
      		                strQText = Left(strQText, intQPos - 1) & " " & Mid(strQText, intQPos + 1)
      30
      		                intQPos = Instr(2, strQText, QUOT)
      31
      		            Loop
      32
      		        End If
      33
      		    End If
      34
      		    SQL = SQL & "WHERE CONTAINS ('" & strQText & "') > 0"
      35
      		    '-- If you want to add your files here, like asp for example
      36
      		    ' then add another line like this:
      37
      		    ' SQL = SQL & " OR Filename LIKE '%.asp'"
      38
      		    SQL = SQL & " AND (Filename LIKE '%.html'"
      39
      		    '-- comment any of next lines to exclude certain files
      40
      		    SQL = SQL & " OR Filename LIKE '%.asp'"
      41
      		    SQL = SQL & " OR Filename LIKE '%.pdf'"
      42
      		    SQL = SQL & " OR Filename LIKE '%.doc'"
      43
      		    SQL = SQL & " OR Filename LIKE '%.xls'"
      44
      		    SQL = SQL & " OR Filename LIKE '%.ppt'"
      45
      		    SQL = SQL & " OR Filename LIKE '%.txt'"
      46
      		    SQL = SQL & " OR Filename LIKE '%.htm')"
      47
      		    SQL = SQL & " ORDER BY " & strOrder & " DESC"
      48
      		    BuildQuery = SQL
      49
      		End Function
      50
      51
      		'-- make HTML string for navigation links
      52
      		' on the top and bottom of the page
      53
      		' this sub first creates the navigation,
      54
      		' then stores it in a local variable (strNavigation)
      55
      		' so we can use it again without needing to call the sub,
      56
      		' and then writes it to the response
      57
      		Sub WriteNavigation(strNavigation, intTotalRecords, intTotalPages)
      58
      		    Dim strScriptName
      59
      		    strScriptName = Request.ServerVariables("SCRIPT_NAME")
      60
      		    '-- controls to scroll to next or previous pages
      61
      		    strNavigation = "<center>" _
      62
      		        & "<a href=""index.html"">New Query</a><br>" _
      63
      		        & intTotalRecords & " total documents matching the query """ _
      64
      		        & strQuery & """<br>" _
      65
      		        & "Page " & intPage & " of " & intTotalPages & "<br>"
      66
      		    '-- if we are on the first page then the First and Previous Page
      67
      		    ' do not need to be active
      68
      		    If intPage = 1 Then
      69
      		        strNavigation = strNavigation & "First Page&nbsp;&nbsp;Previous Page&nbsp;"
      70
      		    '-- else if we are not on the first page make those links active
      71
      		    Else
      72
      		        strNavigation = strNavigation & "<a href=""" & strScriptName _
      73
      		            & "?Query=" & strQuery & "&PAGE=1" _
      74
      		            & "&RecordsPerPage=" & intRecordsPerPage _
      75
      		            & "&Order=" & strOrder & "&Scope=" & strScope & """>First Page</a>&nbsp;" _
      76
      		            & "&nbsp;<a href=""" & strScriptName _
      77
      		            & "?Query=" & strQuery & "&PAGE=" & intPage - 1 _
      78
      		            & "&RecordsPerPage=" & intRecordsPerPage _
      79
      		            & "&Order=" & strOrder & "&Scope=" & strScope & """>Previous Page</a>&nbsp;"
      80
      		    End If
      81
      		    '-- if we are on the last page then there is no need
      82
      		    ' to make the Next and Last Page active
      83
      		    If intPage = intTotalPages Then
      84
      		        strNavigation = strNavigation & "&nbsp;Next Page&nbsp;&nbsp;Last Page"
      85
      		    '-- else if we are not on the last page, then make them active
      86
      		    Else
      87
      		        strNavigation = strNavigation & "&nbsp;<a href=" & QUOT & strScriptName _
      88
      		            & "?Query=" & strQuery & "&PAGE=" & intPage + 1 _
      89
      		            & "&RecordsPerPage=" & intRecordsPerPage _
      90
      		            & "&Order=" & strOrder & "&Scope=" & strScope & """>Next Page</a>&nbsp;" _
      91
      		            & "&nbsp;<a href=" & QUOT & strScriptName _
      92
      		            & "?Query=" & strQuery & "&PAGE=" & intTotalPages _
      93
      		            & "&RecordsPerPage=" & intRecordsPerPage _
      94
      		            & "&Order=" & strOrder & "&Scope=" & strScope & """>Last Page</a>"
      95
      		    End If
      96
      		    strNavigation = strNavigation & "</center>"
      97
      		    Response.Write(strNavigation)
      98
      		End Sub
      99
      100
      		'-- format filesize
      101
      		Function FileSize(intFileSize)
      102
      		    const DecimalPlaces = 1
      103
      		    const FileSizeBytes = 1
      104
      		    const FileSizeKiloByte = 1024
      105
      		    const FileSizeMegaByte = 1048576
      106
      		    const FileSizeGigaByte = 1073741824
      107
      		    const FileSizeTeraByte = 1099511627776
      108
      		    Dim strFileSize, newFilesize
      109
      		    If (Int(intFileSize / FileSizeTeraByte) <> 0) Then
      110
      		    newFilesize = Round(intFileSize / FileSizeTeraByte, DecimalPlaces)
      111
      		    strFileSize = newFilesize & " TB"
      112
      		    ElseIf (Int(intFileSize / FileSizeGigaByte) <> 0) Then
      113
      		    newFilesize = Round(intFileSize / FileSizeGigaByte, DecimalPlaces)
      114
      		    strFileSize = newFilesize & " GB"
      115
      		    ElseIf (Int(intFileSize / FileSizeMegaByte) <> 0) Then
      116
      		    newFilesize = Round(intFileSize / FileSizeMegaByte, DecimalPlaces)
      117
      		    strFileSize = newFilesize & " MB"
      118
      		    ElseIf (Int(intFileSize / FileSizeKiloByte) <> 0) Then
      119
      		    newFilesize = Round(intFileSize / FileSizeKiloByte, DecimalPlaces)
      120
      		    strFileSize = newFilesize & " KB"
      121
      		    ElseIf (Int(intFileSize / FileSizeBytes) <> 0) Then
      122
      		    newFilesize = intFilesize
      123
      		    strFileSize = newFilesize & " Bytes"
      124
      		    ElseIf Int(intFileSize) = 0 Then
      125
      		    strFilesize = 0 & " Bytes"
      126
      		    End If
      127
      		    FileSize = strFileSize
      128
      		End Function
      129
      130
      		'-- format date properly for international viewing
      131
      		Function myFixDate(datWrite)
      132
      		    Dim strHTMLout
      133
      		    strHTMLout = FormatDateTime((datWrite), 1) & " at " & FormatDateTime((datWrite), 3)
      134
      		    myFixDate = strHTMLout
      135
      		End Function
      136
      		%>
      137
      		</body>
      138
      		</html>

      The WHERE clause
      The query that you create against the Indexing Service can be as complex as you want it. Here are some more things you can do with it:

      CONTAINSThe following line matches documents that contain toys or factories:
      WHERE CONTAINS("toys" OR "factories")

      Toys       is within 50 words or less of factories:
      WHERE CONTAINS("toys" NEAR "factories")
      -->this feature was cut from the RTM version of IS 3 at the last minute. The documentation has not been reflected to account for this cut. So the NEAR syntax is ignored, but there is no error message. The 50-word window is built into the FreeText ranking algorithm.
      -->.NET: the proximity operator works, but you still can't specify the distance.
      To match toys, toy, toyed, etc.:
      WHERE CONTAINS('FORMSOF(INFLECTIONAL, "toy")')
      FREETEXTWhen you want to search for the best match for a word or a phrase:
      WHERE FREETEXT('toys for kids')
      LIKEWildcards to perform matches:
      WHERE DocTitle LIKE '%toy%'
      MATCHESUses regular expressions to perform matches. For example, all entries where DocAuthor starts with any character between a and e:
      WHERE MATCHES (DocAuthor, "[a-e]*")
      NULLMatching of null values:
      WHERE DocTitle IS NULL
      WHERE DocTitle IS NOT NULL

      Recovery
      Well, you got the search engine working and everybody is happy. You are receiving kudos from everyone around. But if the search functionality on your site is vital, how can you ever know if something is wrong? Let’s talk about how we can take precautionary action to attempt to fix the service automatically, and be warned if something is wrong. Then you can really sit back and enjoy.

      Go to Start > Programs > Administrative Tools > Services:


      Double click, or right click and go to Properties, on the Indexing Service to open the Indexing Service Properties dialog. Click on the Recovery tab.


      Here, you can define the actions to take once your service fails. You can try different scenarios that best fit your needs. I decided to try a restart on the First failure and then to Run a File on the Second failure. I created a folder called ServerScripts and placed my custom script files to run in there. The SendEmailOnServiceFail.vbs file first makes sure the service is down by attempting to shut it down again, and then tries to bring it back on. It then sends an email to a person to notify them that the service had to be restarted, and may still not work fine. This file uses WSH and the CDONTS to send the email, and you need to have correct access on the windows system to do this (for example Administrative).
      1'-- Declare variables
      2Dim objSendMail
      3Dim objAdminISS
      4'-- The following stops and restarts Indexing Service
      5' comment the following 4 lines not to use this feature.
      6' To use this object you need administrative access
      7Set objAdminIS = CreateObject("Microsoft.ISAdm")
      8objAdminIS.Stop() 'Make sure it's off first
      9objAdminIS.Start() 'And then restart it
      10Set objAdminIS = Nothing
      11'-- Send email when service fails
      12Set objSendMail = CreateObject("CDONTS.NewMail")
      13'change the FROM and TO below
      14objSendMail.From = "someone@somewhere.com"
      15objSendMail.To = "youremail@yourdomain.com"
      16objSendMail.Subject = "Indexing Service has failed!"
      17objSendMail.Body = "<H2><FONT COLOR=Red>" & Date() & " - " & Time() & "</FONT></H2>" & "The Indexing Service has failed. Please check your server!"
      18objSendMail.BodyFormat = 0 'Body property is HTML
      19objSendMail.MailFormat = 0 'MIME format
      20objSendMail.Importance = 2 'High Importance
      21objSendMail.Send
      22Set objSendMail = Nothing

      The default timeout time for vbs files like these is 10 seconds. If you want to change that, right click on the vbs file, and click on Properties. Go to the Script tab, and then click on Stop script after specified number of seconds. When you do that, it will allow you to change the 10 seconds default value to whatever you want. When you click OK, the dialog will create a file in the same folder as your vbs file, give it the same name with the extension ".wsh". This is what a sample file would look like:

      1
      		[ScriptFile]
      2
      		Path=C:\ServerScripts\SendEmailOnServiceFail.vbs
      3
      		[Options]
      4
      		Timeout=20
      5
      		DisplayLogo=1


      You can test it by double clicking on the vbs file to run it. So, in the future, if the service fails, you will receive an email alerting you of the fact. The email should look something like this:

      Putting it all together
      To summarize, here are the steps you need to take to make this work for you:

        1. create your website
        2. turn indexing on for the site
        3. install the Indexing Service
        4. create a catalog
        5. associate the new catalog with your site
        6. add/remove folders from catalog
        7. tune performance
        8. edit noise files
        9. copy search input file on your site (index.html)
        10. copy images for ranking on your site
        11. copy runsearch.asp on your site
        12. make sure index.html file is posting to the runsearch.asp
        13. edit the 3 variables in runsearch.asp file
        14. create recovery procedures
      Conclusion
      Running an ADO query may not be the most flexible way to work with the Indexing Service, but it is the simplest by far. For most cases this is good enough. You can do a lot more with this service. For example, you can have it index custom meta tags and then add those to your queries/results. Or you can export the catalog into a relational database like SQL Server, and then combine it with a content management system for a more advanced search. This article's intention was to give you a quick way to get it up and running. Feel free to alter this as much as possible, and give me feedback. Maybe you can make my code faster or more reliable, or simply expand on it.

      Copyright of Xefteri, all rights reserved]


Some pages may require Adobe Acrobat Reader™


Copyright and Fair Use Information: The contents of this web site is protected by international copyright laws and may not be reproduced in any form or manner whatsoever, if for the purpose of resale or solicitation of a donation. The essays included here, may be reproduced only if: 1)They are not altered in any way; 2) reproductions must be accompanied by this copyright page ; and 3) it is given freely and without charge.
Fair use: The fair use of copyrighted work, including such use by reproduction in copies or phonorecords or by any other means specified in above sections, for purposes such as criticism, comment, news reporting, teaching (including multiple copies for classroom use), scholarship, or research, is not an infringement of copyright. In determining whether the use made of a work in any particular case is fair use the factors to be considered include : (1) the purpose and character of the use, including whether the use is of a commercial nature or is for nonprofit educational purposes; (2) the nature of the copyrighted work; (3) the amount and substantiality of the portion used in relation to the copyrighted work as a whole, and; (4) the effect of the use upon the potential market value of the copyrighted work.
Home | About Narrative? |Contact
Copyright © 2025. All Rights Reserved
HAG122125 (1998 -2026)
